Sapcon

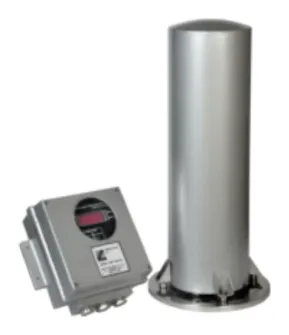

Smart SSI: Speed Monitor for Bucket Elevators
Continuous speed monitoring for bucket elevators in cement and steel plants, with over-speed, under-speed and missing-bucket alarms.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Measuring range: 2 to 3000 pulses per minute
Universal power supply: 18-55 V DC and 90-265 V
Application temperature: 150° C
Output: 4-20 mA analogue; over-speed and under-speed alarms
Maximum detection range: 100 mm
Wall-mounted evaluation unit connected by cable
Process connection: 4" flange with adjustable mechanism; IP65 housing
Models : Smart SSI, SSSI
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
