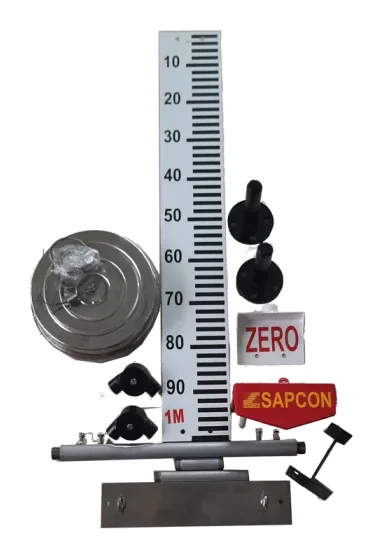

Float & Board Type Level Indicator
Counterweighted float and board level gauge for non-pressurised storage tanks, with an arrow pointer on a scale board. A guided rope and anchor keep it stable in turbulent liquids with specific gravity of 0.8 or more.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Installation on ground-level, overhead and underground tanks
Tank height: up to 20 m guided, up to 8 m non-guided
Float: Ø 300 × 75 mm, SS 316, tested to 2 kg/cm²
Application temperature range: up to 100° C
Adjustable horizontal pipe: 500 to 1000 mm
Wetted parts: SS 316; process connection: flanges
Weatherproof scale board (SS 304 and polyester powder-coated aluminium) with radium markings for distant reading
Models : Float and Board, MECH_FAB
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
