Renu Electronics

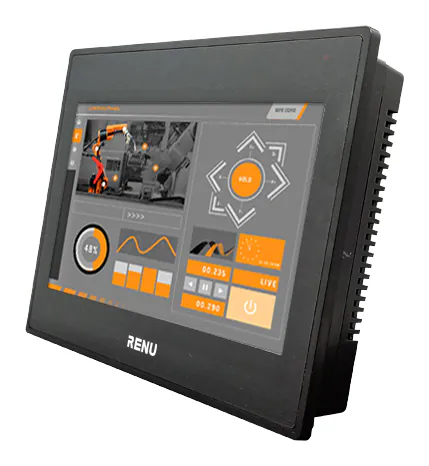

WP6 Plus Series HTML5 Web Panels
Thin-client web panels with a built-in Chromium browser that display HTML5 pages from a web server on the network, such as CODESYS, Ignition or Node-RED.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Display : 4.3", 7" and 10.1" colour TFT
Touch : resistive (TN models) or capacitive (CN models)
High brightness : 1000 nits on CN and CN-M models
CPU : ARM Cortex-A9 (Cortex-A53 on CN-M), 1 GB RAM
Communication : Ethernet, USB 2.0 host, USB Type-C device
Operating system : Linux Yocto
Metal housing : CN-M models
Power supply : 24 VDC
Protection : IP66 front
Models : WP6043TN Plus, WP6070TN Plus, WP6101TN Plus, WP6043CN Plus, WP6070CN Plus, WP6101CN Plus, WP6070CN-M Plus, WP6101CN-M Plus
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
