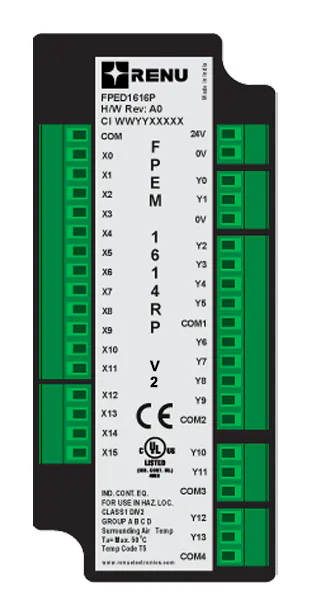

FPEM-V2 Pluggable I/O Modules for FP2 and FP4 Series
Plug-in digital and mixed digital/analog I/O modules that fit Renu FP2 and FP4 series HMIs with I/O support and are powered from the HMI.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Digital inputs : 8 to 16 bi-directional, 24 VDC (EN 61131-2 Type 1)
Digital outputs : 8 to 16, PNP transistor and/or relay
Output rating : 250 mA @ 24 VDC (PNP), 2 A @ 230 VAC / 24 VDC (relay)
High-speed I/O : 2 pairs of 200 kHz inputs, pulse outputs up to 1 kHz
Analog (mixed models) : up to 4 universal inputs (16-bit) and 1 output (12-bit)
Isolation : optical, greater than 1.5 kV
Power : from the HMI
Approvals : CE, UL
Models : FPEM-1614RP-V2, FPEM-1616P-V2, FPEM-1210RP-V2, FPEM-1210P-A0201L-V2, FPEM-1210RP-A0201L-V2, FPEM-1212P-A0200L-V2, FPEM-1212RP-A0200L-V2, FPEM-0808RP-A0401U-V2
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
Explore this range
All industrial automation
PC6101 industrial PC
10.1” WSVGA TFT LED Panel with Resistive Touchscreen
View details

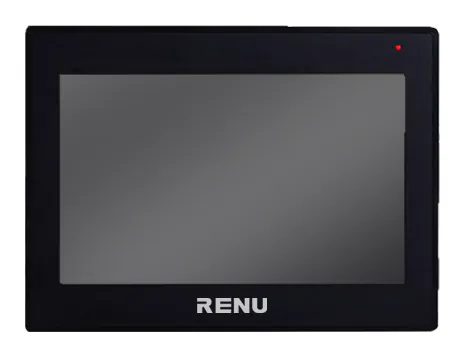

FlexiPanels® Basic HMI FP2 Series
4.3”and 7” TFT display options
View details

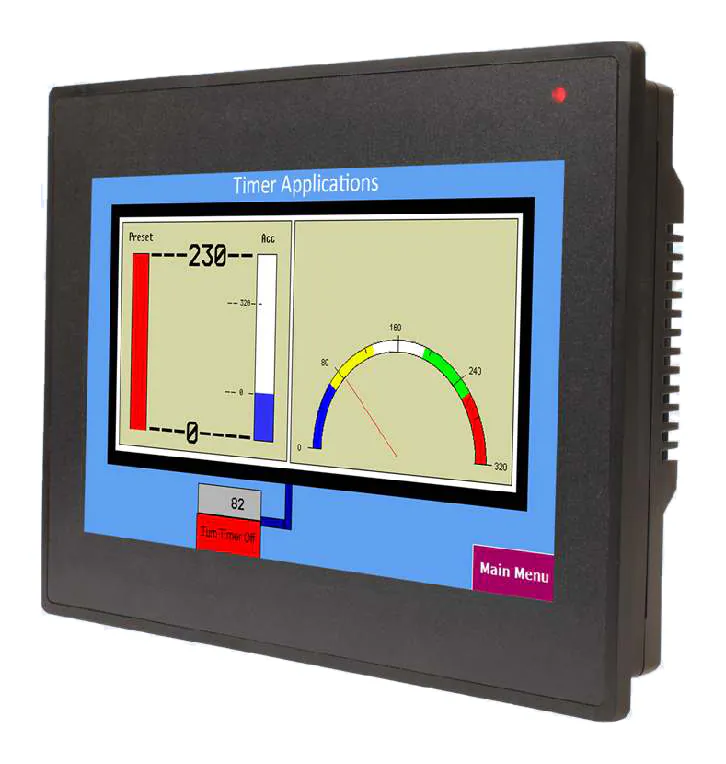

FP3 Series HMI with I/Os
