Renu Electronics

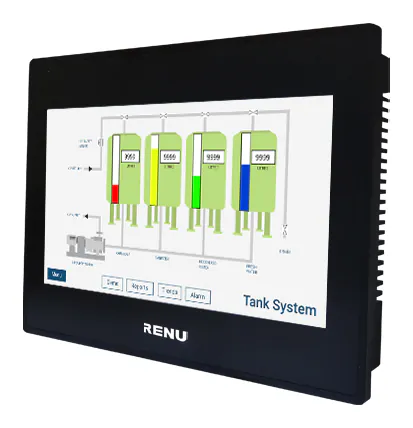

FlexiPanels FP4 Series HMI
Renu's FP4 advanced resistive-touch HMIs with a built-in IEC 61131-3 controller function, Ethernet and serial ports. The -E versions take pluggable I/O modules.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Display : 4.3", 7", 10.1" and 15.1" colour TFT, analog resistive touch
Resolution : 480 x 272 (4.3") to 1024 x 768 (15.1")
Memory : 4 GB eMMC, 512 MB RAM, micro SDHC slot
Communication : RS232/RS485 serial, 10/100 Mbps Ethernet, USB 2.0 host, USB Type-C device
Pluggable I/O (-E models) : 1 slot (4.3"), 3 slots (7"), 5 slots (10.1")
Features : MQTT, e-mail, FTP, VNC server, web server, NTP
Power supply : 24 VDC
Protection : IP66 front, IP20 rear
Approvals : CE, UL Class I Div 2, UKCA, REACH, RoHS
Models : FP4043TN, FP4070TN, FP4101TN, FP4151TN-V2, FP4043TN-E, FP4070TN-E, FP4101TN-E
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
