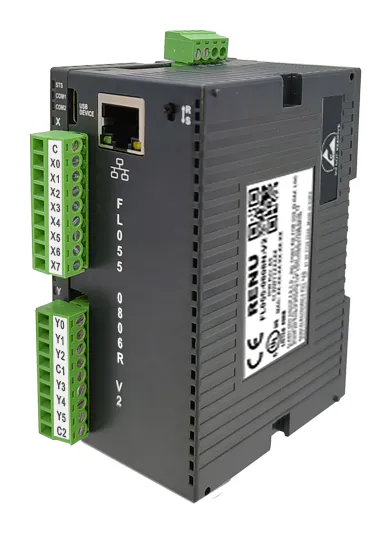

FlexiLogics FL055 Standard Series PLC
DIN-rail FlexiLogics PLC with on-board I/O, two serial ports and Ethernet, programmed in IEC 61131-3 languages with Renu's FlexiSoft software.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
On-board I/O : 8 DI with 6 relay outputs (0806R) or 8 NPN outputs (0808N)
High-speed inputs : 4 pairs up to 200 kHz, quadrature supported
High-speed outputs : up to 200 kHz on the NPN model
Expansion : up to 14 I/O modules
Communication : RS232, RS485, 10/100 Mbps Ethernet, USB Type-C device port
Protocols : Modbus RTU master/slave, Modbus TCP client/server and others
Power supply : 24 VDC
Operating temperature : 0 to 55 °C
Approvals : CE, UL, UKCA, REACH, RoHS
Models : FL055-0806R-V2, FL055-0808N-V2
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
