Renu Electronics

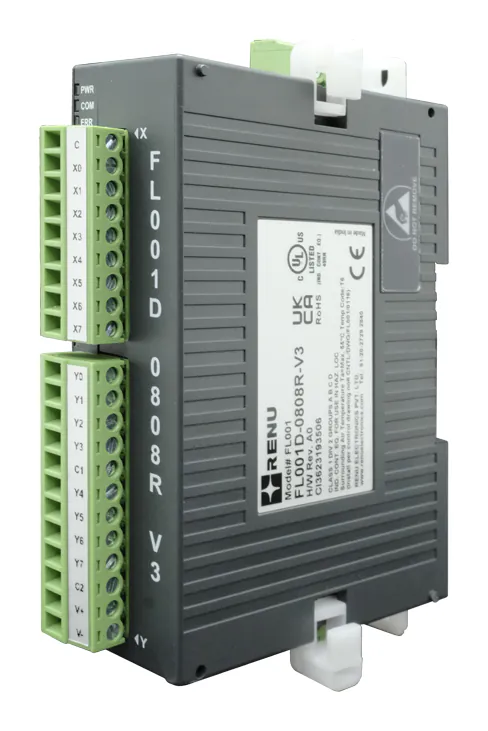

FL001 Series Field I/O Modules
Compact DIN-rail remote I/O modules that add digital (FL001D) or analog (FL001A) points to a PLC or SCADA system over RS485 Modbus RTU.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Digital (FL001D) : 8 DI with 8 NPN or 8 relay outputs
Analog (FL001A) : 8 linear inputs, 0-10 V or 4-20 mA, 12-bit
Communication : 2-wire RS485, Modbus RTU slave
Settings : address, baud rate and parity by DIP switch; no software needed
Power supply : 24 VDC
Operating temperature : 0 to 60 °C
Dimensions : 100 x 26 x 70 mm
Approvals : CE, UL, UKCA, REACH, RoHS
Models : FL001D-0808N-V3, FL001D-0808R-V3, FL001A-0800L-V3
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
