Renu Electronics

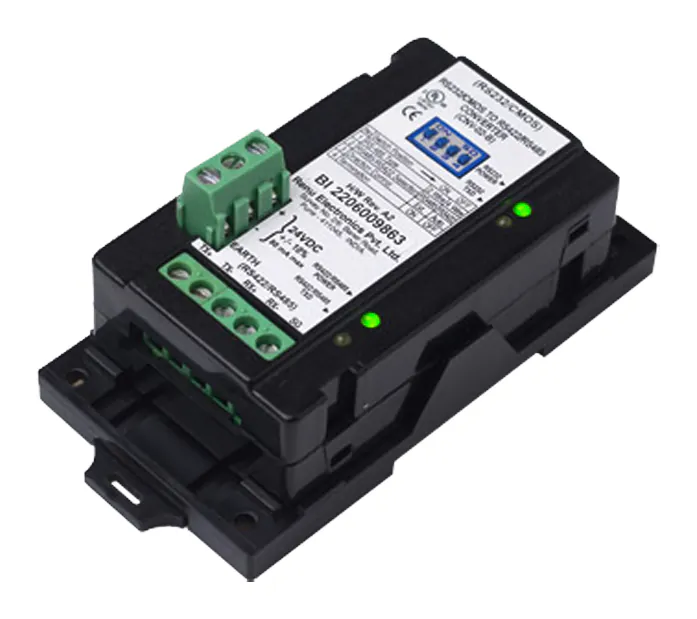

CNV-02-B RS232 / CMOS to RS422 / RS485 Converter
Plug-and-play serial converter from RS232 or CMOS to RS422 or RS485, port-powered or externally powered, with automatic baud rate and direction control.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Ports : RS232 / CMOS (DB9) to RS422 / RS485 (terminal)
Data rate : up to 115.2 kbps
Distance : up to 1200 m when externally powered
Power supply : 24 VDC, 2 W max, or port-powered
Operating temperature : 0 to 60 °C
Mounting : DIN rail or back panel
Approvals : CE, UL
Models : CNV-02-B
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
