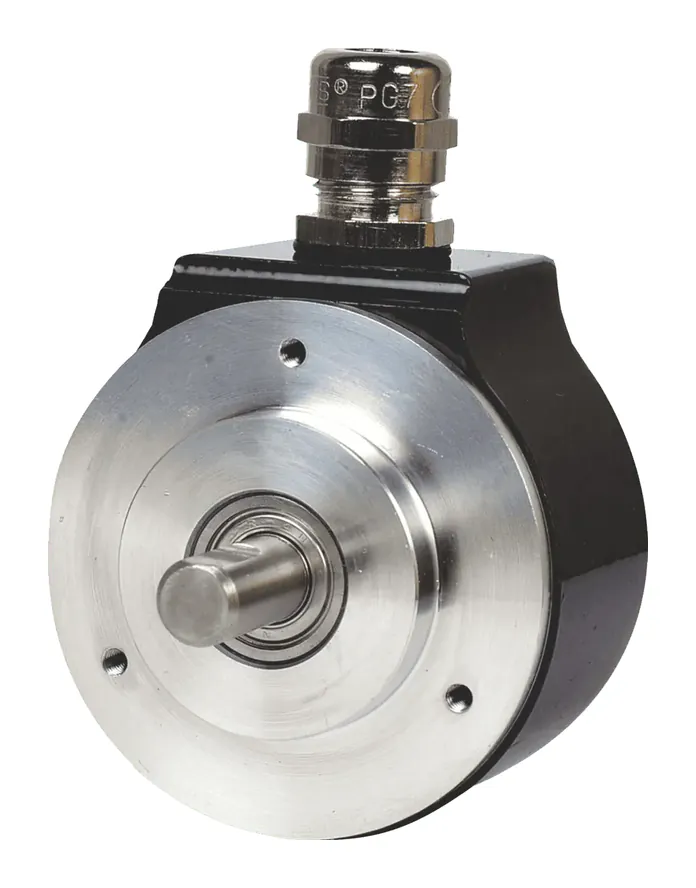

Size 50 shaft encoder J-50S
Compact solid shaft incremental optical encoder under 52 mm diameter with die-cast covers, designed for induction motor feedback. Clamping or square flange mounting.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Shaft : 8 mm solid shaft
Channels : ABZ, AB or A
Output : HV, HVLD, open collector (NPN), TTL / RS422
Resolution : 100 to 5000 PPR
Supply : 5 to 26 VDC (TTL output 5 VDC only)
Mounting : clamping flange or square flange
Protection : IP50 or IP54
Operating temperature : -10 to 70 °C or -20 to 100 °C
Connection : side or end cable gland
Models : J-50S
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
