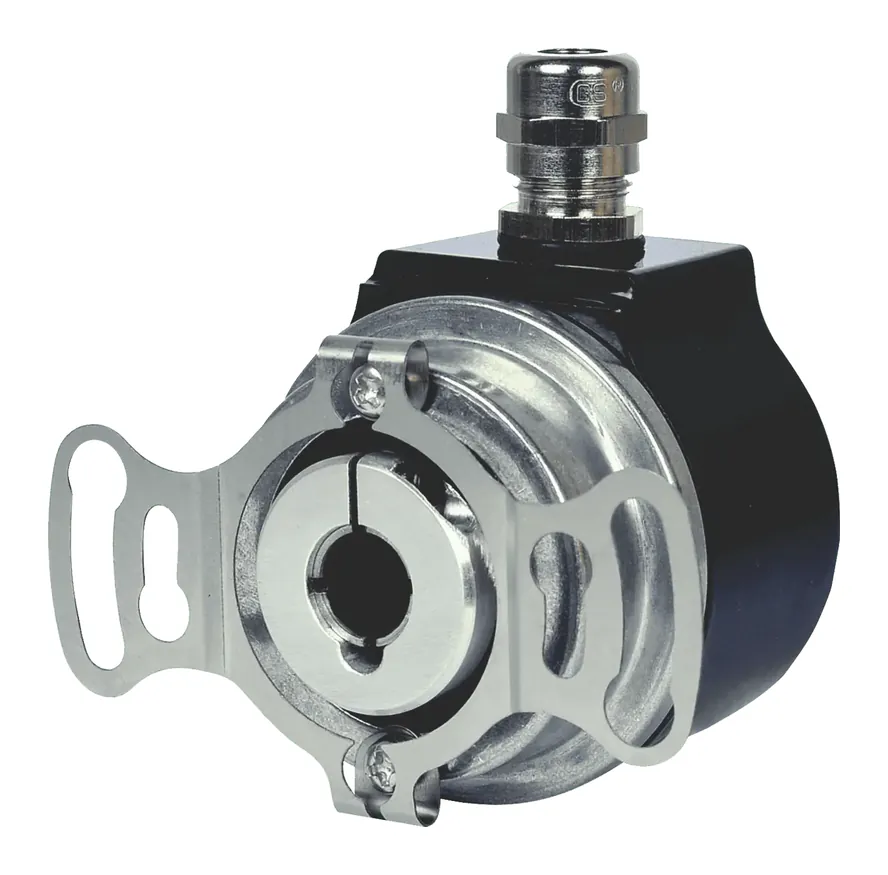

Size 50 hollow shaft encoder J-50H/T
Compact incremental optical encoder under 52 mm diameter with blind (J-50H) or through (J-50T) hollow bore, designed for induction motor feedback. Collet clamp fixing and slotted flex mounts.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Bore : blind or through, 6 mm to 16 mm
Channels : ABZ, AB or A
Output : HV, HVLD, push-pull, PPLD / HTL, open collector (NPN), TTL / RS422
Resolution : 100 to 10000 PPR (higher PPR in the -10 to 70 °C option)
Supply : 5 to 26 VDC (TTL output 5 VDC only)
Mounting : single or double side slotted flex mounts, front or rear side clamping
Protection : IP50, or IP65 with the 70 °C temperature option
Operating temperature : -10 to 70 °C or -20 to 100 °C
Connection : side cable gland, M12 8-pin or M23 12-pin side connector
Models : J-50H, J-50T, J-50H/T
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
