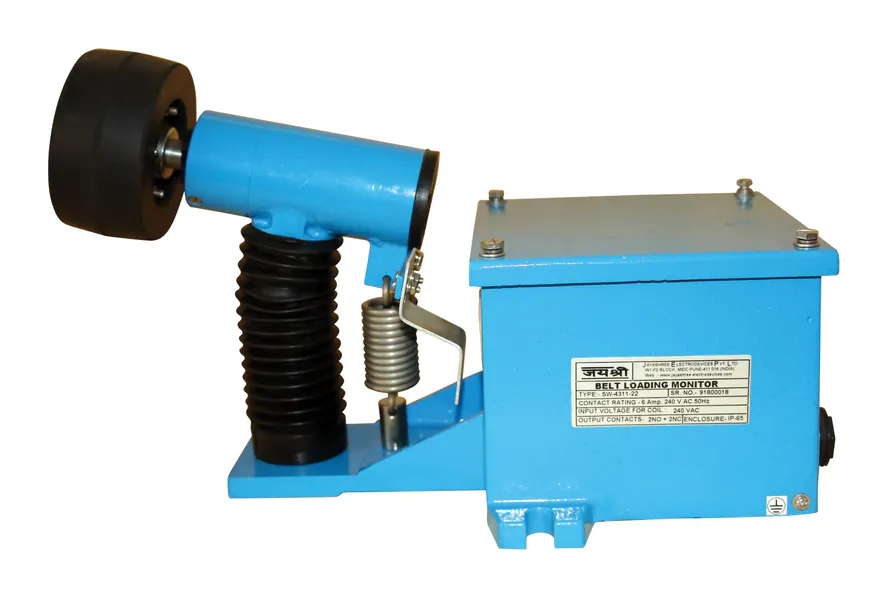

Belt load monitor
Roller-type monitor for bulk material conveyors that senses belt load (loaded or empty) from the vertical displacement of the belt and also checks belt running speed.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Detection : overload and underload of the belt, plus healthy running speed
Outputs : separate signals for load condition and running speed
Belt deflection setting : adjustable, 5 to 30 mm
Output contacts : 2NO + 2NC (SW-4311-22)
Contact rating : 6 A at 240 VAC
Enclosure : cast aluminium, IP65
Display : digital speed display available as an option (RM E214-BL)
Applications : coal, cement, fertilizer and other bulk material handling
Models : SW-4311, SW-4311-22, RM E214-BL
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
