Hindustan

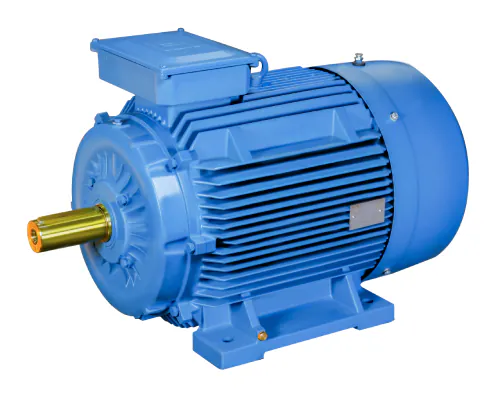

IE4 Super Premium Efficiency Motors
Cast-iron TEFC squirrel-cage induction motors in IE4 super premium efficiency class for safe areas, made to IS 12615 and IEC 60034-30-1.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 0.37 kW to 200 kW
Frames : 71 to 315L
Poles : 2, 4, 6 and 8
Mounting : B3, B5, B14 (up to 132 frame) and combinations
Protection : IP55 (higher on request)
Cooling : IC411, IC416, others on request
Insulation : Class F, temperature rise limited to class B
Standards : IS 12615, IEC 60034-30-1
Bearings : Lubricated for life up to frame 180; re-lubrication arrangement on larger frames
Models : 2HE4
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
