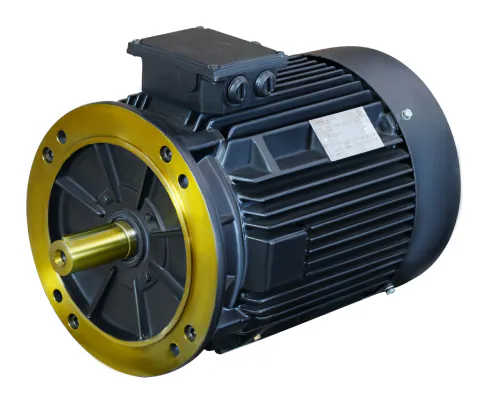

IE3 Premium Efficiency Standard Motors
Three-phase TEFC squirrel-cage induction motors in IE3 premium efficiency class for continuous-duty safe-area applications, built to IS and IEC standards.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 0.12 kW to 315 kW
Frames : 63 to 355LX
Poles : 2, 4, 6 and 8
Mounting : B3, B5, B14 and combinations
Protection : IP55 (higher on request)
Enclosure : TEFC
Insulation : Class F, temperature rise limited to class B
Supply : 415 V ±10%, 50 Hz ±5% or as required
Ambient : 50 °C, up to 1000 m altitude
Models : 2HE3
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
