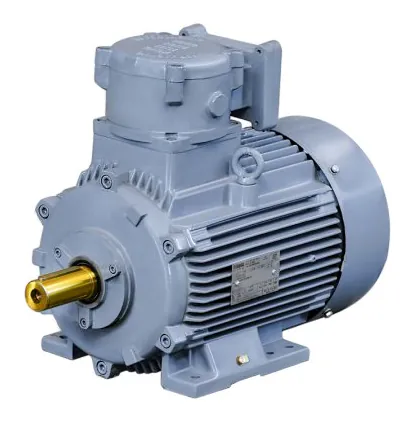

Flameproof Motors for Gas Groups IIA & IIB (Standard, IE2, IE3, IE4)
Ex d flameproof TEFC induction motors to IS/IEC 60079 for Zone 1 hazardous areas with gas groups IIA and IIB, in standard, IE2, IE3 and IE4 efficiency.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 0.12 kW to 200 kW (IE4: 0.37 kW to 132 kW)
Frames : 71 FLP to 315LX FLP (IE4: 80 FLP to 315LX FLP)
Poles : 2, 4, 6 and 8
Protection type : Ex d, IS/IEC 60079-0 and 60079-1
Gas groups : IIA and IIB
Temperature class : T3 to T6 (IE4)
Mounting : B3, B5, B14 (up to 132 frame) and combinations
Protection : IP55 (higher on request)
Enclosure : TEFC
Insulation : Class F, temperature rise limited to class B
Models : 2FD1, 2FE2, 2FE3
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
