Hindustan

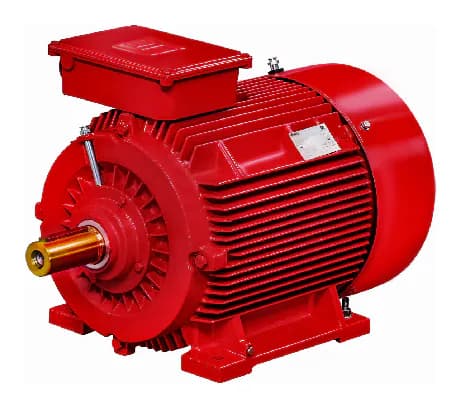

Fire Fighting Motors
TEFC induction motors from HEM for fire-fighting pump drives, with performance to IS 12615.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 3.7 kW to 250 kW
Frames : 100L to 315LX
Poles : 2 and 4
Mounting : B3, B5, B14 or special
Protection : IP55 (higher on request)
Enclosure : TEFC
Insulation : Class F, temperature rise limited to class F
Ambient : 40 °C, up to 1000 m altitude
Supply : 415 V ±10%, 50 Hz ±5% or as required
Models : 2HF2
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
