CG Power

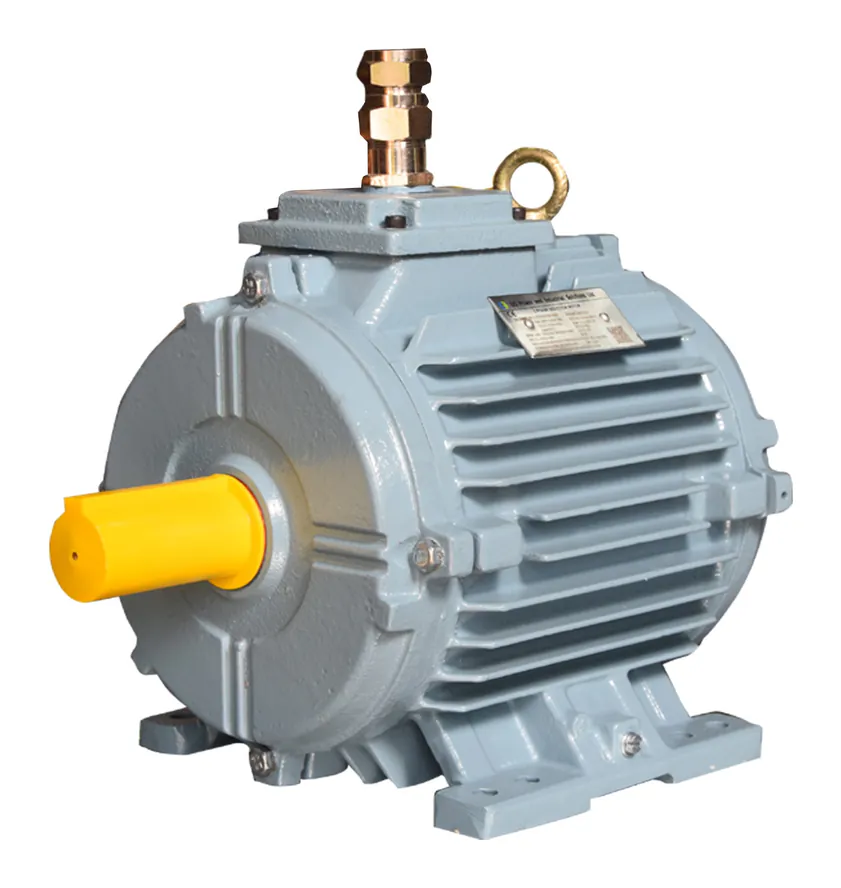

Smoke extraction motors
CG motors for smoke extraction fans that must keep running during a fire or at high ambient temperature, compliant with BS EN 12101-3:2015.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 0.75 kW to 160 kW
Frame sizes : 80 to 315
Poles : 2, 4, 6, 8
Supply : 415 V (others on request), 50 Hz
Efficiency : IE2 / IE3 / IE4
Temperature rating : F300 for 2 h, F400 for 2 h
Cooling : IC418
Insulation : Class H
Standard : BS EN 12101-3:2015
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
