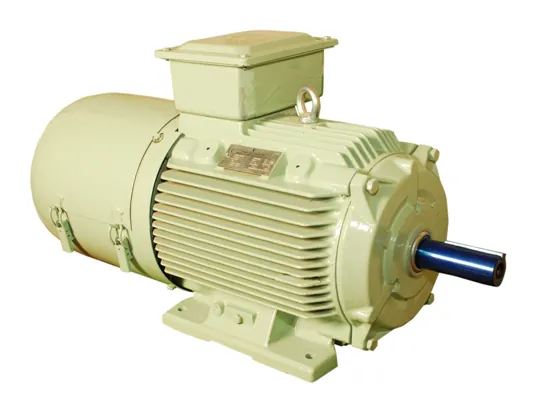

Slip ring motors (LV)
CG low-voltage wound-rotor slip ring induction motors for high starting torque and speed control via external rotor resistance, in TEFC and drip proof builds.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 2.2 kW to 450 kW
Frame sizes : IEC 132 to 450, cast iron
Poles : 4 to 8 (others on request)
Supply : 415 V (others on request), 50 or 60 Hz
Enclosure : TEFC (IP55) or drip proof (IP23)
Mounting : foot / flange / face
Ambient : -20 °C to +50 °C (others on request)
Slip rings : epoxy-moulded insulation
Applications : cranes, hoists, elevators, conveyors, mills
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
