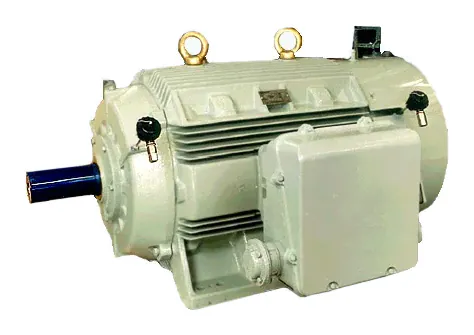

NEMA premium efficiency motors
CG NEMA Premium efficiency motors for the North American market in cast iron and aluminium enclosures, built to NEMA MG 1 and listed with DOE.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 1 HP to 100 HP (cast iron); 1 HP to 10 HP (aluminium)
Frame sizes : NEMA 143T to 405T (cast iron); 143T to 215T (aluminium)
Poles : 2 to 6 cast iron, 2 to 8 aluminium (others on request)
Supply : 460 / 575 V (cast iron), 60 Hz; service factor 1.15
Protection : IP55 (others on request); ambient -20 °C to +40 °C
Standards : NEMA MG 1, CSA C22.2 No. 100, UL 1004 (cast iron)
Approvals : CSA, CE
Drive : inverter duty to NEMA MG 1 Part 31
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
