CG Power

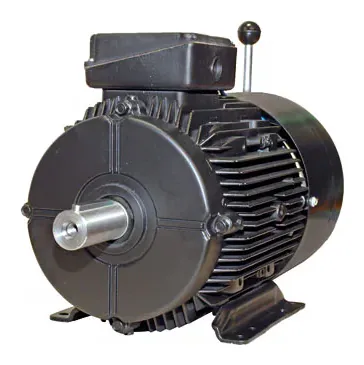

Kibosh brake motors
CG Kibosh brake motors for cranes, hoists, rolling mills, wind turbines and elevators, in aluminium and cast iron frames with AC or DC brake options.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 0.37 kW to 7.5 kW (aluminium); 0.55 kW to 45 kW (cast iron)
Frame sizes : 63 to 132 (aluminium); 80 to 225 (cast iron)
Poles : 4 and 6
Supply : 415 V standard (others on request), 50 and 60 Hz
Cooling : IC411
Ambient : -20 °C to +50 °C
Brake : AC and DC variants, multiple braking torque options
Conversion : CG safe area motors up to 225 frame accept a brake kit
Models : Kibosh
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
