CG Power

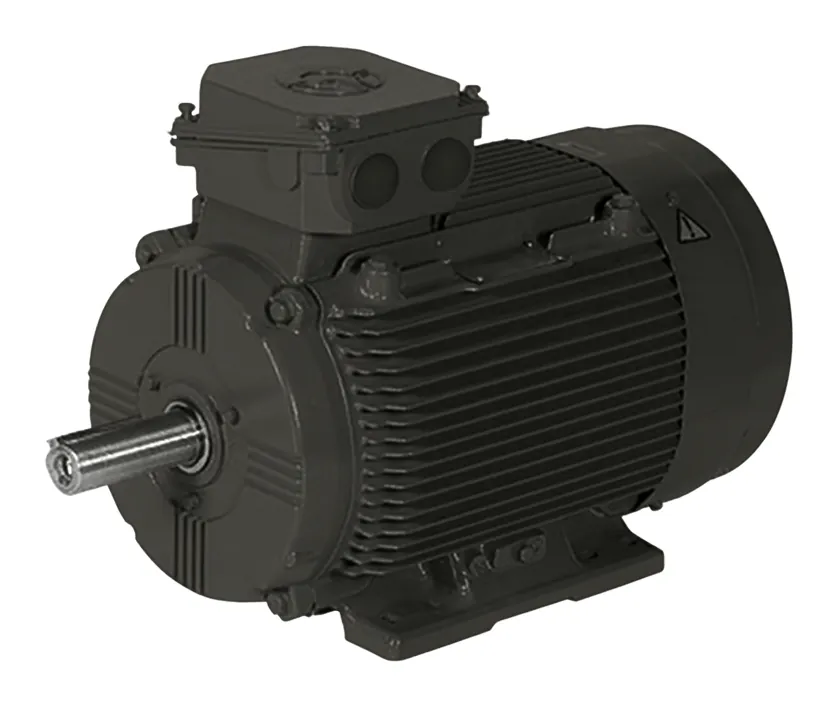

IE4 Apex series general purpose motors (super premium)
CG's Apex series IE4 super premium efficiency squirrel cage motors in cast iron frames, meeting IS 12615 and IEC 60034-30-1, aimed at continuous-duty applications.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Efficiency : IE4 to IS 12615 and IEC 60034-30-1
Output : 0.55 kW to 1000 kW (others on request)
Frame sizes : IEC 80 to 450, cast iron
Poles : 2 to 8
Supply : up to 690 V, 50 or 60 Hz
Mounting : foot / flange / face
Protection : IP55 (others on request); ambient -20 °C to +50 °C
Drive : inverter compatible
Models : Apex IE4
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
