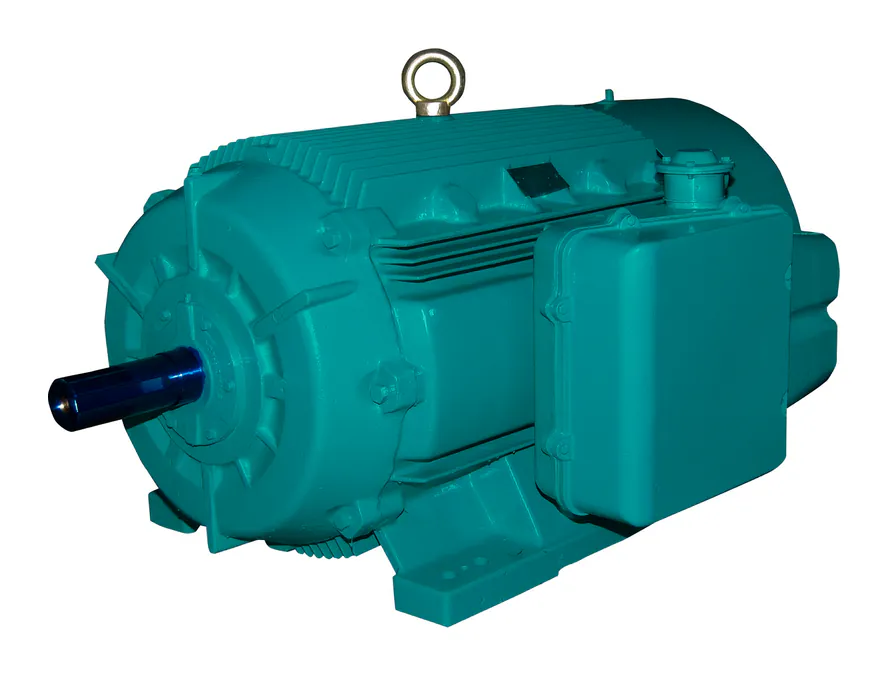

IE2 / IE3 Apex series general purpose motors
Three-phase squirrel cage induction motors from CG in IE2 high and IE3 premium efficiency classes, offered in cast iron and aluminium frames for general industrial duty.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Efficiency : IE2 / IE3 to IS 12615 and IEC 60034-30-1
Output : 0.55 kW to 1000 kW (cast iron); 0.18 kW to 7.5 kW (aluminium)
Frame sizes : IEC 80 to 450 (cast iron); IEC 63 to 132 (aluminium)
Poles : 2 to 8 (others on request)
Supply : up to 690 V, 50 or 60 Hz
Mounting : foot / flange / face
Protection : IP55 (others on request); ambient -20 °C to +50 °C
Insulation : Class F, temperature rise within Class B
Drive : inverter compatible
Models : Apex, GD, NG, ND
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
