CG Power

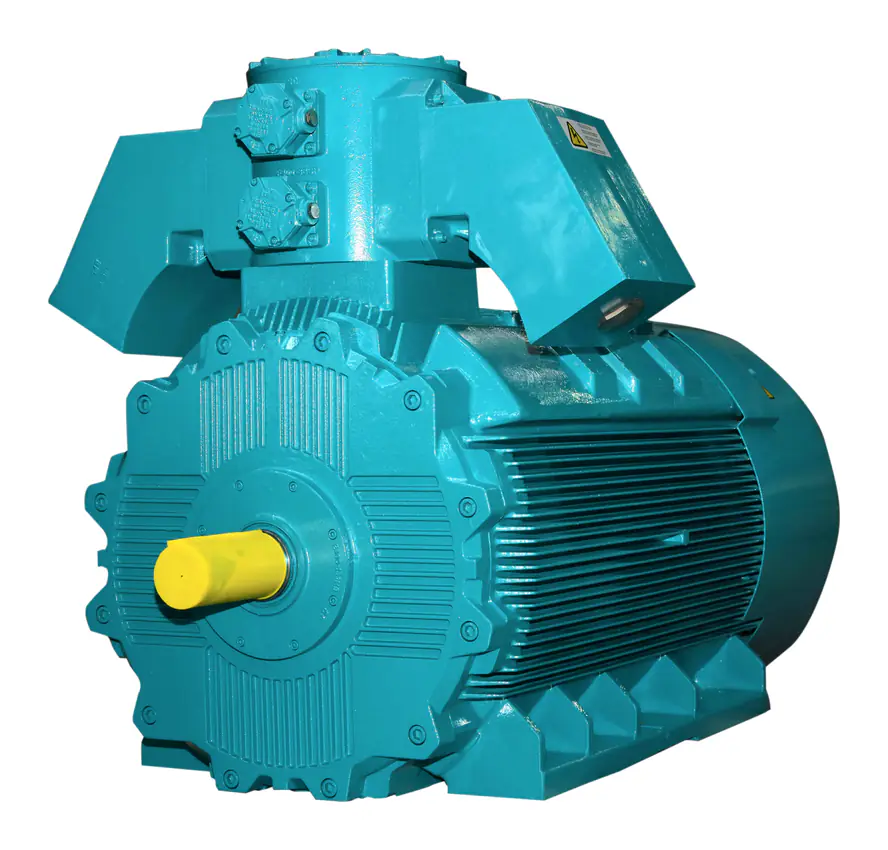

Flameproof motors Ex 'db' (LV)
CG low-voltage flameproof Ex 'db' squirrel cage motors for hazardous areas, certified to ATEX/IECEx and Indian requirements (BIS, DGMS, PESO).
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 0.37 kW to 500 kW
Frame sizes : IEC 80 to 400, cast iron
Poles : 2 to 8 (others on request)
Supply : 415 V (others on request), 50 or 60 Hz
Gas groups : IIA, IIB and IIC
Temperature class : T4 to IS/IEC 60079-1
Protection : IP55 standard; IP56, IP65, IP66 optional; ambient -20 °C to +50 °C
Certification : PESO, ATEX, IECEx, DGMS, ECAS
Finish : epoxy, RAL 7034 (IE2), RAL 5021 (IE3), RAL 7022 (IE4)
Models : Ex db
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
