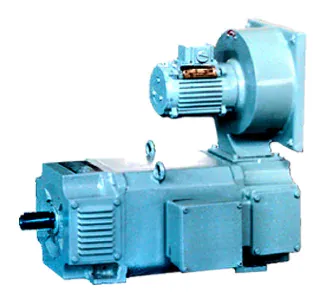

DC motors
CG laminated yoke DC motors in IEC frames up to 560 for constant and variable speed drives, designed to run from 6-pulse thyristor supplies.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 0.75 kW to 1320 kW
Frame sizes : IEC 100 to 560
Armature voltage : 440 V; field voltage : 220 V (others on request)
Excitation : shunt / series
Speed : 1500 rpm (others on request)
Mounting : foot / flange / face
Protection : IP23 (others on request)
Insulation : Class F up to 132 frame; Class H from 160 frame
Construction : fully laminated yoke, skewed rotor, VPI armature; DTG 400 tacho mounting
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
