CG Power

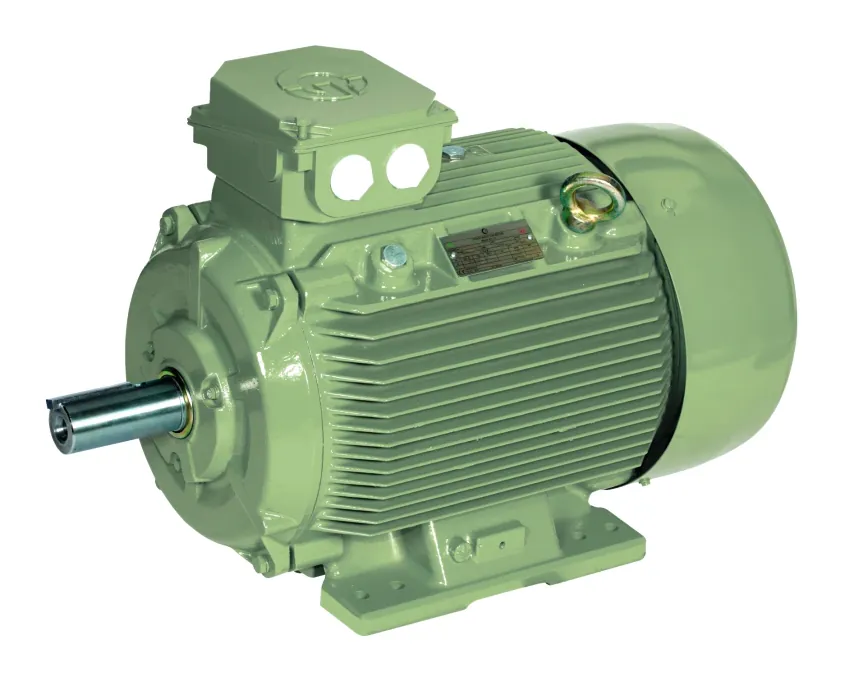

Crusher application motors
CG crusher series motors for fluctuating loads and high starting demand, with a high-strength shaft and drive-end roller bearing to take shock loads.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Output : 45 kW to 250 kW
Frame sizes : 225 to 355, cast iron
Poles : 4 and 6
Supply : 415 V (others on request), 50 Hz
Insulation : Class F; VPI with epoxy gel coat on overhang
Ambient : 50 °C
Shaft and bearings : EN24 shaft; roller bearing at drive end
Protection : space heater and 3 x PTC 150 °C from 280 frame
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
