CG Power

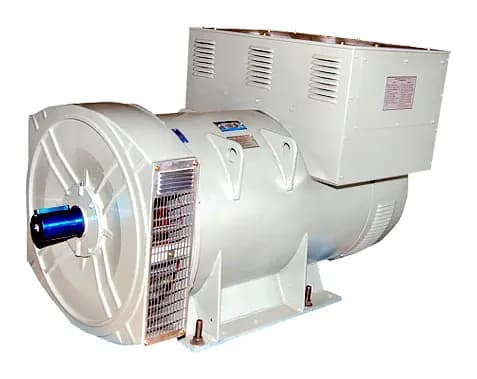

AC generators / alternators (LV)
CG low-voltage self-excited, self-regulated AC generators in brushless and slip ring designs, single and three phase, for generating sets and agro use.
Price, availability and exact configuration are confirmed with your quotation.
Features & specifications
Specifications
Three-phase brushless : 5 kVA to 2250 kVA, 415 V, regulation ±1%
Single-phase brushless : 5 kVA to 82.5 kVA, 240 V, regulation ±1%
Three-phase slip ring : 5 kVA to 82.5 kVA, 415 V, regulation ±5%, frames 160 to 200
Single-phase slip ring : 5 kVA to 20 kVA, 240 V, regulation ±5%, frames 160 to 200
Speed : 1500 rpm, 4 pole; 50 Hz (60 Hz optional); 0.8 pf lagging
Enclosure : SPDP, IP23; horizontal foot mounted (B3)
Insulation : Class H; temperature rise within Class H limits
Construction : single or double bearing (brushless); double bearing (slip ring)
Ratings and options can vary by model. Confirm the selected configuration and current manufacturer documentation before ordering.
